Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Z-Crown.OEM.ODM
  • Model Number: Z-C5/6
  • Type: Cat 5e
  • Number of Conductors: 8
  • Product Name: Cat6 Network Cable Manufacturer
  • Conductor Material: Bare Copper/CCAG/CCA/CCA+CCS
  • Insulation: PE
  • Jacket Material: PVC/ROHS/LSZH
  • Fire Rating: CMR,CMG,CMP
  • Shield Type: Available(UTP,FTP,STP,SFTP,SSTP).
  • Color: Blue,Grey,Black,Yellow,Orange,Green,White,Pink,Purple,Brown,Red
  • Service: OEM,ODM
  • Cores: 8 cores
  • Certification: CE,ROHS,UL,FLUKE TEST

Packaging & Delivery

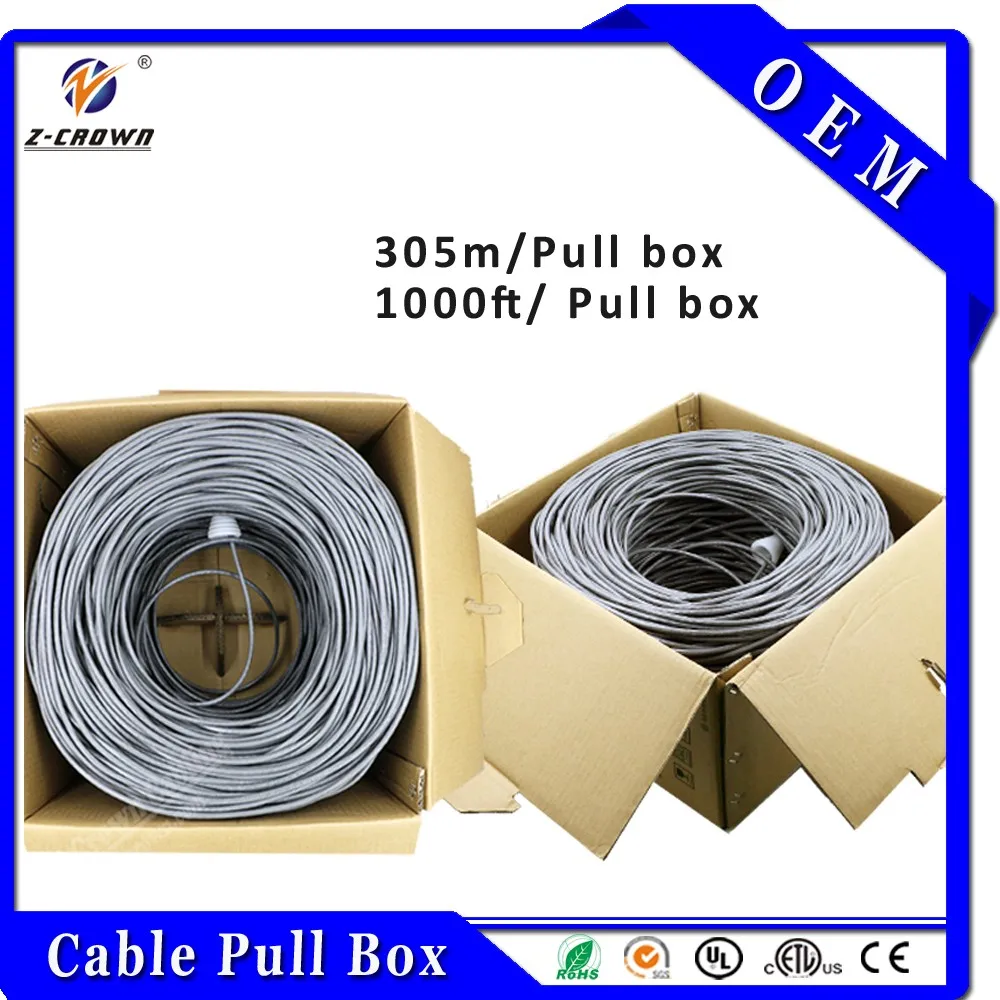

Packaging Details: 305mtr( 1000ft) / in a pull box. 2inner pull box packed in a outer carton.
100m per roll with PE or Pull box.
500m per wooden durm.
Others Packing Avialable.
Delivery Detail: 3-5Days (If you have special require,According to the actual )




♦  Product Description   ♦

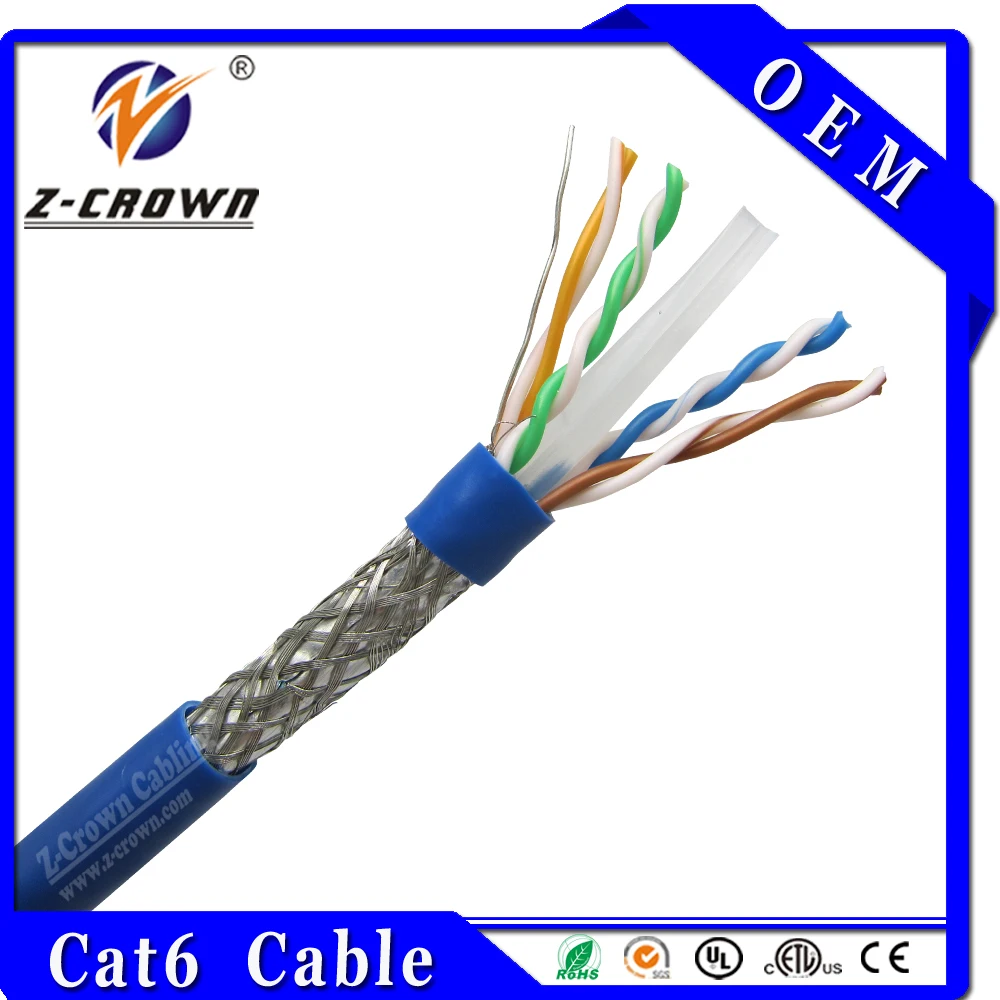

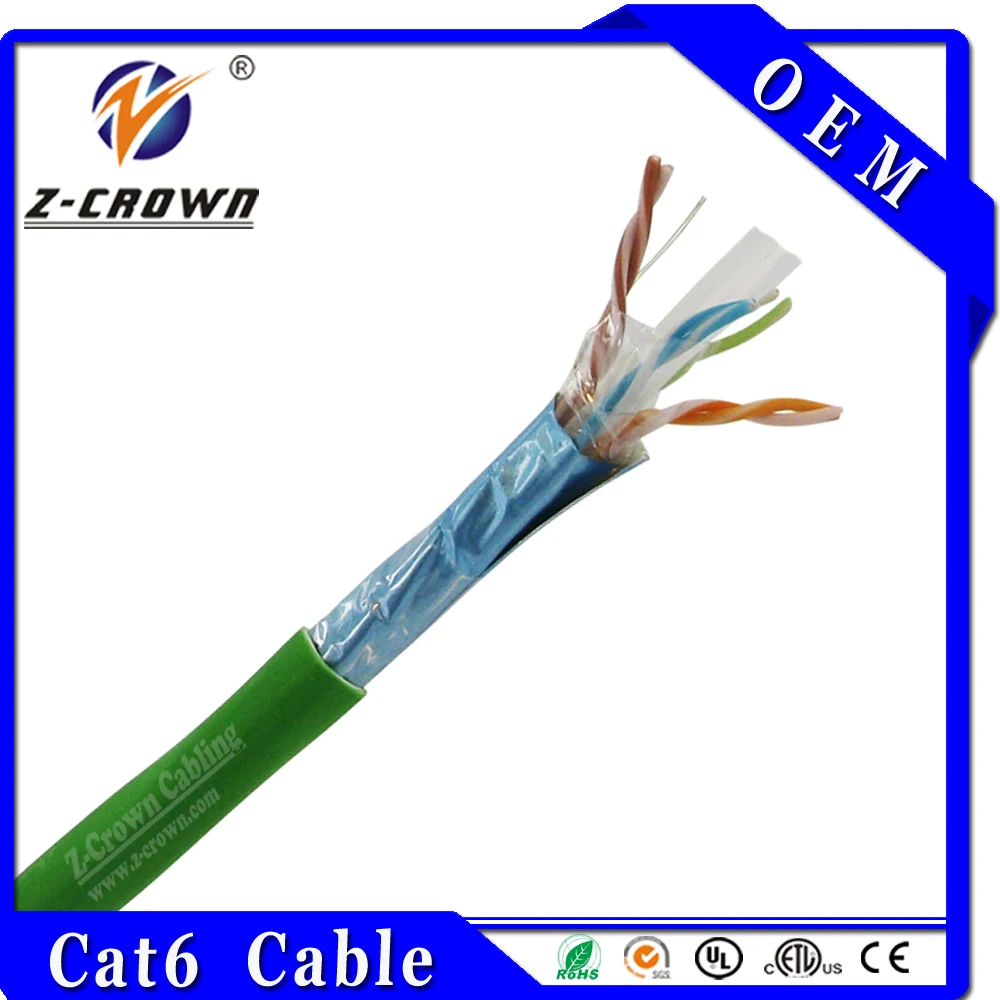

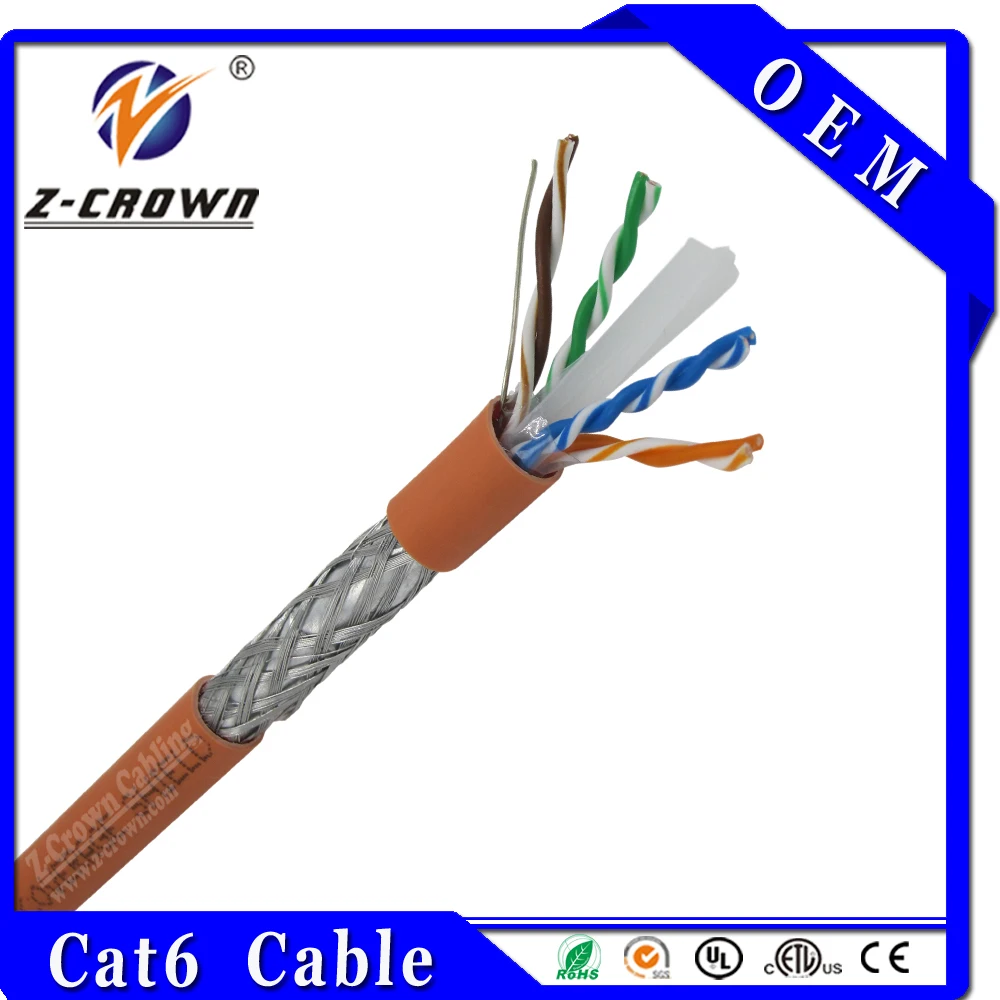

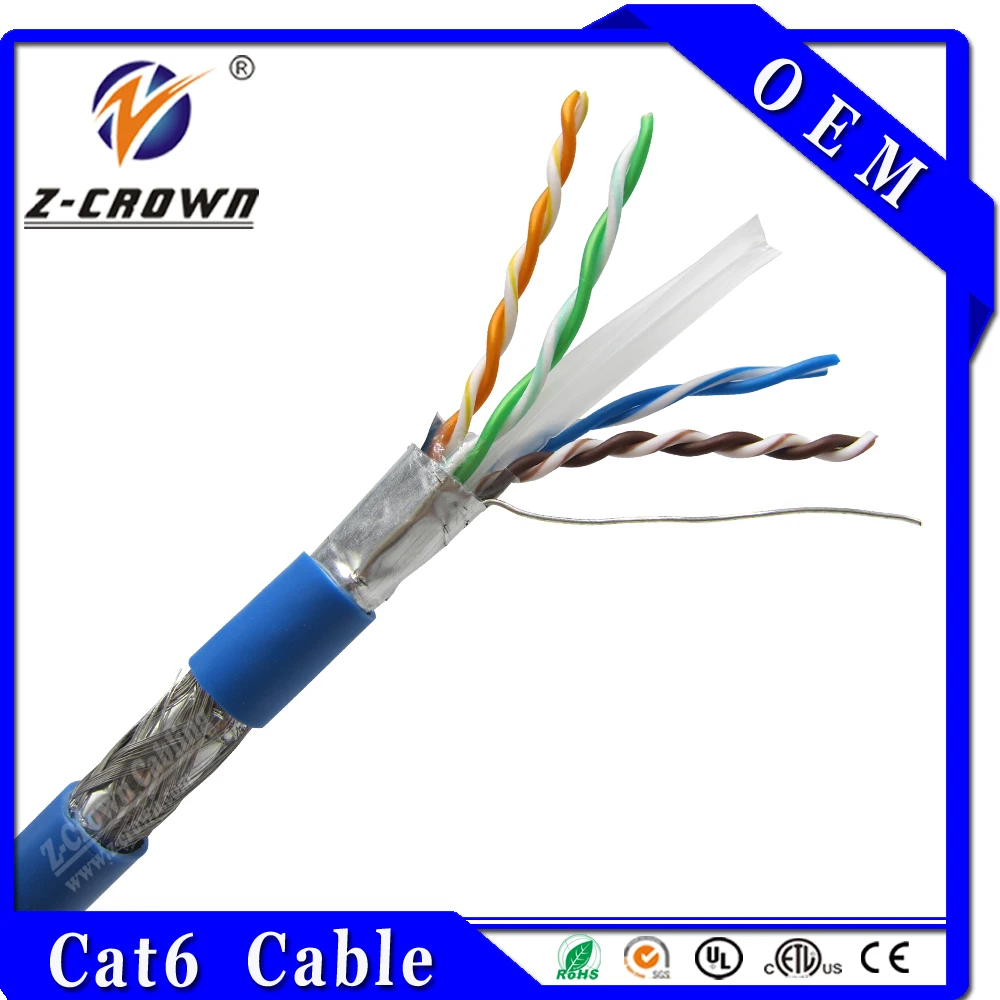

   ♦ Lan cable factory direct sell Catagory 6 stp/ftp cable

  • Application structured cabling for computer networks such as Ethernet over twisted pair.
  • CAT5e cable support 10/100 Ethernet,CAT6 cable support 100/1000,1GB Ethernet.
  • CAT5e cable will support Ethernet,and Gigabit Ethernet. It can completely backwards compatible .
  • Product testing is using MEA network analyzer that imported from Germany.



ModelCat5e,6 Cable
Conductor Size24AWG
4*2*1/0.51mm (0.50mm, 0.48mm, 0.45mm, 0.4mm, 0.38mm)
Conductor MaterialBC/CCU/CCA/OFC/CCS
Nuber Of Conductor2P, 4P
ShiledUTP/FTP/STP/SFTP /SSTP
Flammability Grade:CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / OutdoorSingle jacket / Double jacket
Insulation MaterialPE , HDPE
Insulation Thickness0.515mm
Number of pairs: 4 pairs

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown

Jacket MaterialPVC, ROHS PVC, LSZH PVC
Jacket Thickness0.92-0.95mm
DC Resistance(Max.)9.5Ω/100m
DC Resistance Imbalance2.50%
Working Capacitance(Max.)5.4nF/100m
Insulation Resistance10000MΩ.km
Transmission Velocity65%
Operating Temperation-20 °C - +75 °C
PVC Jacket ColorAs client’s request.
Print Words On CableCAT5E 4P 24AWG VERIFIED TO
EIA/TIA 568B.ISO/IEC 11801 EN501
or clients' request.
Construcation Draw

















Detailed Images








Packaging & Shipping:



Goods NamePacking TypePacking(mm)PackingDimension(cm)Unit.CBMQTY/Container
GIFTBOXCARTONGIFTBOXCARTONLWH20GP40HQ
UTP CAT5E INDOORIN GIFTBOX19*35*3541*37*36305m/roll2roll/ctn4136370.05510002450
FTP/SFTP CAT5E INDOOR21*35*3545*37*37305m/roll2roll/ctn4537370.0629002200
UTP/FTP/SFTP CAT5E OUTDOORWOODEN REEL32*32*22.566*35*24305m/Reel2reel/ctn6635240.05510002400
